Board formed concrete walls are traditionally made by pouring concrete into wooden plank forms to create a wood grain texture. RealCast Board-Form is a panelized system that allows you to get the look of a traditional board formed concrete wall without the high cost and intense labor.

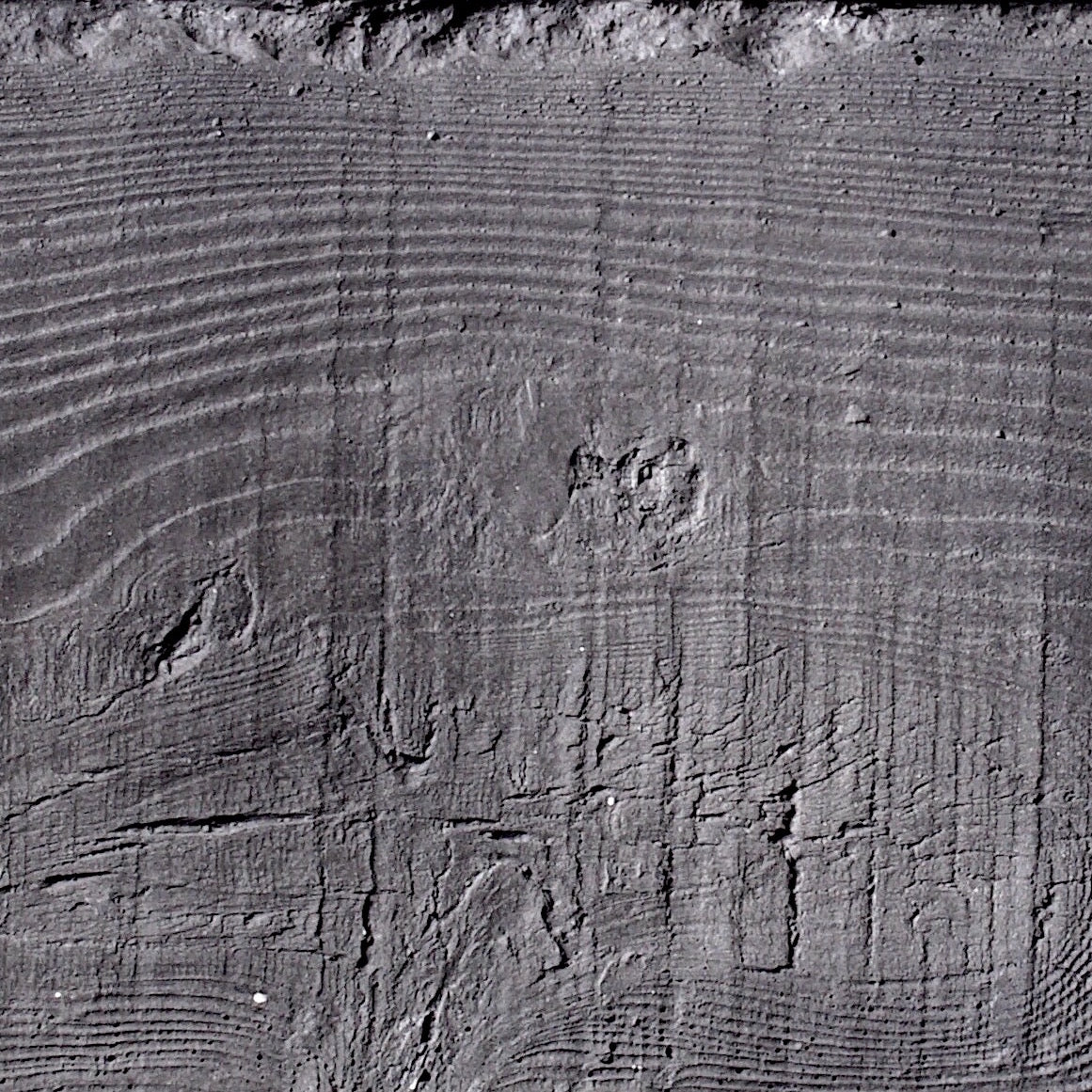

Charcoal offers a dark grey concrete option, great for making a moody statement in any space.

RealCast has all the charm of real concrete, including slight texture and color variations throughout. RealCast uses the same formulation and finishing techniques for every order created, but panel colors and textures can vary slightly during the curing phase. You can expect to see that same natural variation that makes concrete so beautiful and sought after.

RealCast Board-Form panels give the exact look and feel of a poured board formed concrete wall but keep the cost of any project down as these panels are easy to install & extremely lightweight.

Weighing only 2.5 lb/sq.ft. these panels are fastened to the wall by using the recommended adhesive or thin-set mortar as outlined in the RealCast Install Instructions. Each panel has staggered edges to help hide vertical seams, and once the concrete panels are mounted and installed you won’t be able to notice that it was not created using traditional forms. RealCast Board-Form panels are easily cut with a mitre saw using a masonry blade, and installed using simple tools.

RealCast Board-Form concrete panels allow you to get an authentic looking concrete formed wall in any space you imagine!

**Note: RealCast is made to order. Canceled orders may incur some fees if production has began or is completed. The images we display have the most accurate color possible. However, due to differences in computer monitors, there may be variations in color between the actual product and your screen. It is always recommended to order a sample to confirm exact coloration.

Material: Fiber reinforced concrete

Plank size: ~80" W x 6" H

Thickness: Approx. 3/8"

Square feet per panel: 3.3

Weight: 2.5 lb per square foot

Non-Combustible: Yes

Exterior rated: Yes

*Dimensions can vary due to panel design & molding process. Expect variation of approx. 1/16” or more.

Install Sheet

Product Data Sheet

Warranty

Read FAQs about RealCast Board-Form Concrete here.
